VRF-Air Cooled System


Download Brochure

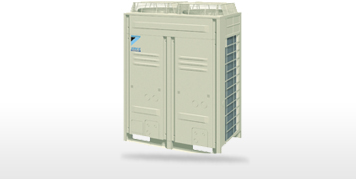

Outdoor Units

Specifications

  • Range minimum (5HP) 4.15 TR to maximum (54HP) 42 TR
  • Compact -space saving
  • Efficient & high performance inverter type & constant speed type scroll compressors
  • High Coefficient of Performance (COP)
  • Operates on environment friendly refrigerant R-410A
  • Design flexibility- suitable for large sized buildings
  • Long piping length up to 165 meters
  • Higher external static pressure condenser fan
  • Automatic test operation function
  • Memory function –Eliminate malfunctions
  • Nighttime quite operation function
  • High combination ratio (Indoor unit vs. Outdoor unit)
  • Can be Configured with building management control system –optional
  • Equipped with EPD (Electrical Protection Device)
  • HRV with DX Coil

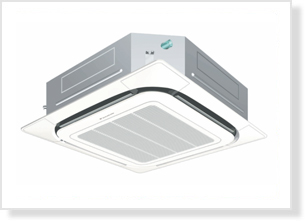

Indoor Units :Ceiling Mounted Cassette (Round Flow ) Type

Models :FXFQ25, FXFQ32, FXFQ40, FXFQ50, FXFQ63, FXFQ80, FXFQ100, FXFQ125

Quiet Sound level :As low as 27 dB(A)

Range :0.8 TR to 4.1 TR

Round Flow :Industry's first 360° airflow ensures uniform airflow distribution

Multi-flow system : Different flow direction can be selected according to installation

Inbuilt Drain Pump :Water lift-up mechanism upto 850mm

Air-Purifying Filter :With anti-mould and anti- bacterial treatment

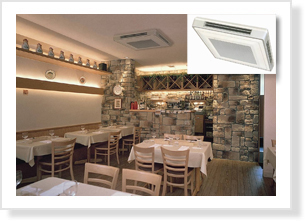

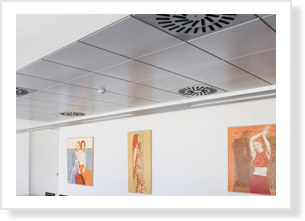

Indoor Units :Compact Multi Flow Cassette Type

Models :FXZQ20, FXZQ25,FXZQ32,FXZQ40,FXZQ50

Quiet Sound level :As low as 27 dB(A)

Range :0.65TR to 1.65TR

Compact in size :Corresponds with 600mm x 600mm architectural module ceiling design

Comfortable airflow : Wide variation of choice Built-in condensate drain pump

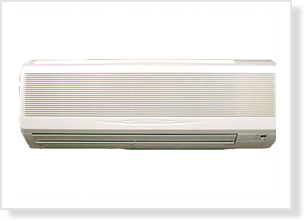

Indoor Units :Wall Mounted Type

Models :FXAQ20, FXAQ25, FXAQ32, FXAQ40, FXAQ50, FXAQ63

Low Operation Sound Level Sound level :Sound Level as low as 29 dB(A).

Range :0.65 TR to 2 TR Sophisticated design harmonized with interior décor

Auto-Swing operation :Auto-swing maintains efficiency of air distribution. The louver closes automatically when the unit stops.

5 Step Discharge angle : Discharge angle can be set by remote controller. (Initial 10° for Cooling and 70° for heating)

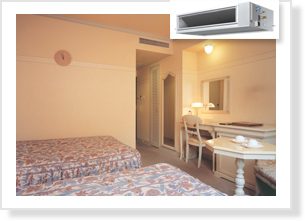

Indoor Units :Slim Ceiling Mounted Duct Type

Models :FXDQ20, FXDQ25, FXDQ32, FXDQ40, FXDQ50, FXDQ63

Quiet Sound level :As low as 29 dB(A)

Range :0.65 TR to 2.08 TR

3-Step Airflow Control :selectable by remote controller making it comfortable and flexible unit

Equipped with a drain pump (750 mm lift)

Indoor Units :Ceiling Mounted Duct Type

Models :FXMQ20, FXMQ25, FXMQ32, FXMQ40, FXMQ50, FXMQ63, FXMQ80, FXMQ100, FXMQ125, FXMQ140, FXMQ200, FXMQ250

Design Flexibility :Expansion of external static pressure

Wide Range : 0.65 TR to 8.25 TR

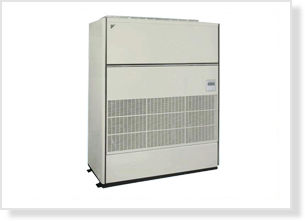

Indoor Units :Floor Standing Duct Type

Models :FVYCP280, FVYCP450, FVYCP560

Easy Maintenance : Front of unit

High Air Flow Rate

High Static Pressure

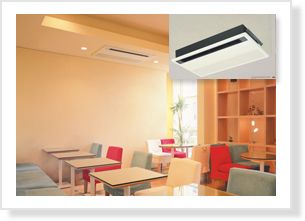

Indoor Units :Ceiling Mounted Cassette Corner Type

Models :FXKQ25, FXKQ32, FXKQ40, FXKQ63

Quiet Sound level : as low as 33 dB(A)

Range : 0.8 TR to 2.08 TR

Equipped with drain lift pump

Flexible installation & slim in design

Single- flow type allows effective air discharge from corner or from drop-ceiling

It's slim body requires 220 mm space above the ceiling and 195 mm space with use of panel spacer

Equipped with a long -life filter

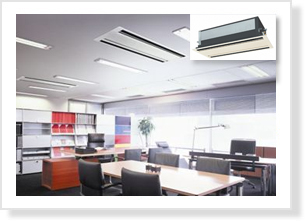

Indoor Units :Ceiling Mounted Cassette –Double Flow Type

Models :FXCQ20, FXCQ25, FXCQ32, FXCQ40, FXCQ50, FXCQ63, FXCQ80, FXCQ125

Sound level : as low as 27 dB(A)

Range : 0.6 TR to 4.16 TR

Equipped with drain lift pump

Thin unit (only 305 mm high) can be installed in a ceiling space as narrow as 355 mm

Higher airflow suitable for high ceiling application up to 3 metres

Indoor Units :Ceiling Suspended Cassette Type

Models :FXUQ71,FXUQ100,FXUQ125

Range : 2.3 TR to 4.13 TR

Inbuilt Drain Pump with high lift drain water lift-up mechanism.

Flat Turbo Fan :Ultra thinner & quieter design made by flat turbo fan.

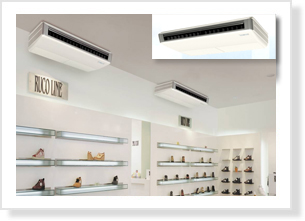

Indoor Units :Ceiling Suspended Type

Models :FXHQ32,FXHQ63,FXHQ100

Range : 1 TR to 3.3 TR

Wide air discharge

Drain pump kit can be easily incorporated.

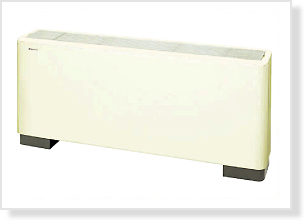

Indoor Units :Floor Standing Type

Models :FXLQ20, FXLQ25, FXLQ32, FXLQ40, FXLQ50, FXLQ63

Quiet Sound level :As low as 32 dB(A)

Range : 0.65 TR to 2.08 TR

Suitable for perimeter zone air conditioning

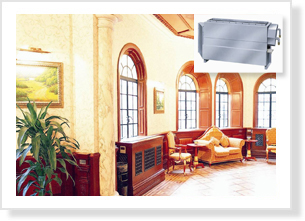

Indoor Units :Concealed Floor Standing Type

Models :FXNQ20,FXNQ25, FXNQ32, FXNQ40, FXNQ50, FXNQ63

Range : 0.65 TR to 2.08 TR

Gives high class interior design. Installed in skirting wall of perimeter

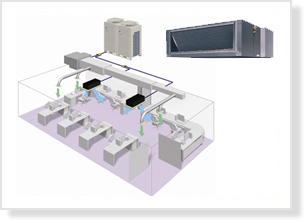

Indoor Units :Outdoor-Air Processing Unit

Models :FXMQ125MFV1, FXMQ200MFV1, FXMQ250MFV1

Range : 4TR to 8.2TR

Combines fresh air treatment & air-conditioning supplied from single system

Air conditioning and outdoor air processing can be accomplished using a single system
